Tutorials > How to use Mnemonic Constants

The use of Mnemonic Constants improves the readability of your code. This version of the control implements a new internal design to expose these public enumerated types. You will see them in the drop downs on property sheets and in Microsoft's Intellisense feature.

The only environment where this is not the case is Microsoft Visual C++ environment (due to the manner in which the environment communicates with the control).

The following is the full list of enumerated types with their associated properties:

Enumerated type	Corresponding properties or parameters
enumErrorCodes	LastError
enumDriverTypes	nDriverType parameter of the InitDriversType method
enumStates	return value of GetPlayerStatus method
enumTagVersions	return value of GetMp3TagVersion method
enumScaleUnits	ScaleUnits
enumFileTypes	return value of GetFileType method and nFormat parameter of the LoadInternetStreamWithFormat method
enumGranulType	ForwRewGranularityType property
enumTagTypes	nTagType parameter of the IsTagAvailable and GetTagString methods
enumTagFields	nField parameter of the GetFileTagField method
enumPlayListModes	nMode parameter of the PlayListLoad method
enumPlayListFormats	nFormat parameter of the PlayListSave method
enumPlayListFieldsForDj	nString parameter of the PlayListGetItemString method
enumBoolean	Several methods use this boolean value.
enumOscillType	Oscilloscope.Type
enumVuBandsMode	VUMeter.BandType
enumWaveformUpdateRes	Waveform.UpdateResolution
enumFadeOutModes	Fader.FadeOutMode
enumFadeTypes	nFadeType parameter of the Fader.Init method
enumCdActions	nAction parameter of the PerformActionOnCd method
enumCdStates	Return value of GetCdStatus method and nCdStatus parameter of the CdPlayerStatusChanged event
enumCdIdCodes	nIdentType parameter of the GetCdIdentification method
enumVolumeScales	nScaleType parameter of the StreamVolumeLevelGet, StreamVolumeLevelSet, PlayListSaveAutomation, ASIO.DeviceChannelVolumeGet, ASIO.DeviceChannelVolumeSet, ASIO.DeviceMasterVolumeGet, ASIO.DeviceMasterVolumeSet, PlayListItemVolAutomPointAdd, Fader.FadeInTargetVolumeGet, Fader.FadeInTargetVolumeSet, CoreAudioDevices.ChannelVolumeGet, CoreAudioDevices.ChannelVolumeSet, CoreAudioDevices.MasterVolumeGet, CoreAudioDevices.MasterVolumeSet methods. VolumeAutomation.ScaleType property.
enumDirectXEffects	Effects.DirectXEffectApply, Effects.DirectXEffectIsApplied, Effects.DirectXEffectParamsSet and Effects.DirectXEffectParamsGet methods
enumEaxEffects	GetEaxEffect, SetEaxEffect and SetEaxEffectPresets methods
enumEventStreaming	nState parameter of DownloadBuffering event
enumEventLoadStreamResults	nResult parameter of StreamLoaded event
enumWaveformResolutions	nResolution parameter of the Waveform.AnalyzeFullSound method
enumWaveformTypes	nWaveformType parameter of the Waveform.BitmapViewSaveToFile and Waveform.BitmapViewSaveToMemory methods
enumSpeakersConfig	GetOutputSpeakersConfig and SetOutputSpeakersConfig methods
enumSpeakers	nSpeaker parameter of the StreamOutputSpeakerSet, Effects.PreAmplifierSpeakerValueGet, Effects.PreAmplifierSpeakerValueSet, TracksBoard.ItemSpeakerGet and TracksBoard.ItemSpeakerSet methods, return value of the StreamOutputSpeakerGet method
enumCddbAlbumInfo	nInfo parameter of the CddbGetAlbumInfo method
enumCdCoverSizes	nCoverSize parameter of the GetCdCoverPictureURL, GetCdCoverPictureFile and CdCoverPictureFileGet methods and of the CdCoverPictureFileAvailable event
enumPlayListItemType	nItemType parameter of the PlayListAddItemEx method
enumDspExternalFunctions	nFunctionType parameter of the CustomDSP.ExternalSetFunction method
enumVstInfo	nInfo parameter of the VST.GetInfoString method
enumVstParamInfo	nInfo parameter of the VST.ProgramParamGetInfo method
enumEqualizerPresets	nPreset parameter of the EqualizerLoadPresets method
enumGraphicBarOrientations	nOrientation member of the GRAPHIC_BAR_SETTINGS data structure
enumGraphicBarShapes	nShape member of the GRAPHIC_BAR_SETTINGS data structure
enumSoundDirections	Return value of the SoundDirectionGet method and nDirection parameter of the SoundDirectionSet method
enumRAWEncodeModes	nEncodeMode parameter of the LoadSoundFromRawFile, LoadSoundFromRawMemory, MediaFileDecoder.FileInfoGet, MediaFileDecoder.FileOpenRaw, SoundComposer.ItemSoundFileRawAdd, SoundComposer.ItemSoundFileMemoryRawAdd, SoundComposer.ItemSoundFileRawInfoGet methods
enumLrcFileIdTags	nTagType parameter of the LrcIdTagGet method
enumEncodingFormats	nEncodeFormat parameter of the CastingCreateFromStreamMixer and CastingCreateFromPlayer methods
enumCastEncodeModes	nEncodeMode parameter of the CastingCreateFromStreamMixer and CastingCreateFromPlayer methods
enumAudioRendererModes	nMode parameter of the VideoPlayer.AudioRendererModeSet method and return value of theVideoPlayer.AudioRendererModeGet method.
enumMemoryMediaFormats	nMediaFormat parameter of the VideoPlayer.LoadFromMemory, VideoPlayer.LoadFromMemoryForEAX, VideoPlayer.LoadFromMemoryForTempoChange, VideoPlayer.LoadFromMemorySync, VideoPlayer.LoadFromMemorySyncForEAX and VideoPlayer.LoadFromMemorySyncForTempoChange methods.
enumTextAlignment	nAlignment parameter of the VideoMixer.OSDItemTextAdd and VideoMixer.OSDItemTextChange methods
enumRectAlignment	nAlignment parameter of the VideoMixer.OSDItemChangeAlignment method
enumDriverTypes	nDriverType parameter of the InitDriversType method and return value of the GetOutputDeviceDriverType method
enumAsioChannelModes	nChannelMode parameter of the ASIO.DeviceStart method
enumVolumeAutomationPosUnits	nPosUnit parameter of the PlayListSaveAutomation method, nPositionUnit parameter of the PlayListItemVolAutomPointAdd and PlayListItemCuePointAdd methods. VolumeAutomation.PositionUnit property
enumVolumeCurves	nCurveType parameter of the PlayListItemVolAutomPointAdd, VolumeAutomation.PointAdd, VolumeAutomation.PointGetParams, VolumeAutomation.PointSetParams, VolumeAutomation.PointAdd, VolumeAutomation.CurveDesigner.DisplayCurveType, StreamVolumeSlide, StreamVolumeSlideEx, StreamVolumeSmoothingSet, StreamVolumeSmoothingSetEx, TracksBoard.ItemVolumeFadingGet, TracksBoard.ItemVolumeFadingSet, TracksBoard.ItemVolumeFadingSetEx, TracksBoard.ItemVolumePointCurveGet, TracksBoard.ItemVolumePointCurveSet and TracksBoard.ItemVolumePointCurveSetEx methods
enumWavChunkStringInfo	nInfoField parameter of the GetWavChunkStringInfo method
enumWavChunkNumericInfo	nInfoField parameter of the GetWavChunkNumericInfo method
enumWavChunkBinaryInfo	nInfoField parameter of the GetWavChunkBinaryInfo method
enumFilterNames	nFilterName parameter of the FilterApply method
enumFilterTypes	nFilterType parameter of the FilterApply method
enumCommonDialogInfo	nInfo parameter of the CommonDialogGetInfoFromLastOpen and CommonDialogGetInfoFromLastSave methods.
enumGraphicFormats	nFormat parameter of the Waveform.BitmapViewSaveToFile and VideoPlayer.FrameGrabberExecToFile methods
enumWaveformStereoModes	nWaveformStereoMode parameter of the Waveform.BitmapViewDrawToHdc method
enumWaveformLineModes	nMode parameter of the Waveform.BitmapViewVerticalLineAdd method
enumMp3BitrateTypes	Return value of the GetMp3BitrateType method
enumVideoGrabberStopTypes	nStopType parameter of the VideoPlayer.FrameGrabberExecToFile and VideoPlayer.FrameGrabberExecToMemory methods
enumFramesSet	Return value of the VideoPlayer.FrameGrabberResultsGetAvailableType method
enumTagAvailable	Return value of TagsEditor.ALL_AnalyzeSoundOnPlayer and TagsEditor.ALL_AnalyzeSoundFile methods
enumTagFields	nField parameter of the TagsEditor.ALL_CommonFrameGet, TagsEditor.ID3V1_FieldGet, TagsEditor.APE_TextFieldGet, TagsEditor.LYRICS3_TextFieldGet methods
enumMp4Frames	nFrameId parameter of the TagsEditor.MP4_TextFrameGet method
enumOggFrames	nFrameId parameter of the TagsEditor.OGG_TextFrameGet method
enumId3v2FrameInfo	nInfo parameter of the TagsEditor.ID3V2_PictureFrameInfoGet, TagsEditor.ID3V2_CommentFrameInfoGet, TagsEditor.ID3V2_SynchLyricsFrameInfoGet, TagsEditor.ID3V2_GeneralObjectFrameInfoGet, TagsEditor.ID3V2_UnsynchLyricsFrameInfoGet, TagsEditor.FLAC_PictureFrameInfoGet, TagsEditor.WMA_PictureFrameInfoGet methods
enumId3v2PictureType	nPictureType parameter of the TagsEditor.ID3V2_PictureFrameTypeGet, TagsEditor.WMA_PictureFrameTypeGet, TagsEditor.FLAC_PictureFrameTypeGet methods
enumId3v2ReceivedAsType	nReceivedAs parameter of the TagsEditor.ID3V2_CommercialFrameReceivedAsGet method
enumId3v2CommercialInfo	nInfo parameter of the TagsEditor.ID3V2_CommercialFrameInfoGet method
enumId3v2SyncLyricsType	nLyricsType parameter of the TagsEditor.ID3V2_SynchLyricsFrameInfoNumGet method
enumId3v2TimeStampFormats	nTimeStampFormat parameter of the TagsEditor.ID3V2_SynchLyricsFrameInfoNumGet, TagsEditor.ID3V2_EventTimingsFrameEventCountGet methods
enumId3v2OwnershipInfo	nInfo parameter of the TagsEditor.ID3V2_OwnershipFrameInfoGet method
enumId3v2EventTimingTypes	nEventTimingType parameter of the TagsEditor.ID3V2_EventTimingsFrameEventInfoGet method
enumBextChunkField	nFieldId parameter of the TagsEditor.WAV_BextChunkTextFieldGet method
enumBextChunkBinaryField	nFieldId parameter of the TagsEditor.WAV_BextChunkBinaryFieldGet method
enumCartChunkTextField	nFieldId parameter of the TagsEditor.WAV_CartChunkTextFieldGet method
enumCartChunkTimeMarkerField	nFieldId parameter of the TagsEditor.WAV_CartChunkTimeMarkerFieldGet method
enumCoreAudioDeviceStates	nStateMask parameter of the CoreAudioDevices.Enum method
enumCoreAudioDataFlows	nDataFlow parameter of most methods of the CoreAudioDevices COM object
enumCoreAudioDeviceNames	nTypeOfName parameter of the CoreAudioDevices.DescGet method
enumCoreAudioRoles	nRole parameter of the CoreAudioDevices.DefaultGet method
enumCoreAudioDeviceStates	nStatus parameter of the CoreAudioDevices.StatusGet method
enumCoreAudioCaptureParts	nPartId parameter of the CoreAudioDevices.CapturePartChannelCountGet, CoreAudioDevices.CapturePartChannelVolumeGet and CoreAudioDevices.CapturePartChannelVolumeSet methods
enumCoreAudioRenderParts	nPartId parameter of the CoreAudioDevices.RenderPartChannelCountGet, CoreAudioDevices.RenderPartChannelVolumeGet. CoreAudioDevices.RenderPartChannelVolumeSet, CoreAudioDevices.RenderPartMuteGet and CoreAudioDevices.RenderPartMuteSet methods
enumCdInfo	nInfo parameter of the CdInfoGet method
enumMidiPositionUnits	nPositionUnit parameter of the MIDI.SeekToPosition, MIDI:MarkersEnumItemGet, MIDI.StreamEventsEnumFromRange, MIDI.StreamEventsEnumItemGet, MIDI.TriggerAdd, MIDI.TriggerSetPos methods.
enumMidiMarkerNotifications	nMarkerType parameter of the MidiMarkerNotification event and of the MIDI.MarkersEnableNotifications, MIDI.MarkersEnum and MIDI:MarkersEnumItemGet methods.
enumStreamMidiEvents	nMidiEvent parameter of the MidiStreamEventNotification event and of the MIDI.StreamEventApply, MIDI:StreamEventValueGet, MIDI.StreamEventsEnableNotifications, MIDI.StreamEventsEnum, MIDI.StreamEventsEnumFromRange, MIDI:StreamEventsEnumItemGet, MIDI.StreamEventsListItemAdd, MIDI.StreamEventsListItemModify, MIDI.StreamEventsListItemGet methods.
enumMidiKeyboardOrientations	nOrientation parameter of the MIDI.KeyboardCreate method
enumMidiSoundFontStringInfo	nInfo parameter of the MIDI.SoundFontInfoStringGet method
enumMidiSoundFontNumInfo	nInfo parameter of the MIDI.SoundFontInfoNumGet method
enumVstType	nType parameter of the VST.GetType method
enumWasapiDeviceTypes	nDeviceType parameter of the WASAPI.InputDeviceAttachToPlayer, WASAPI.DeviceCoreAudioIndexGet, WASAPI.DeviceGetCount, WASAPI.DeviceGetDesc, WASAPI.DeviceIsFormatSupported, WASAPI.DeviceIsStarted, WASAPI.DeviceLatencyGet, WASAPI.DeviceMuteGet, WASAPI.DeviceMuteSet, WASAPI.DeviceSharedFormatGet, WASAPI.DeviceStartExcusive, WASAPI.DeviceStartShared, WASAPI.DeviceStop, WASAPI.DeviceVolumeGet, WASAPI.DeviceVolumeSet, SoundRecognizer.StartOnWasapiDevice methods
enumWasapiChannelModes	nChannelMode parameter of the WASAPI.DeviceStartShared method
enumCoreAudioDeviceTypes	nDeviceType parameter of the CoreAudioDevices.TypeGet method
enumOSDAutoMoveDirection	nDirection parameter of the VideoMixer.OSDItemMovementSet method
enumWaveformStereoModes	nStereoVisualizationMode parameter of the WSCROLLER_SETTINGS structure
enumWaveScrollerAutoUpdate	nUpdateSpeed parameter of the WSCROLLER_SETTINGS structure
enumBitmapModes	nMode parameter of the WaveformScroller.SetBackPictureFromFile and WaveformScroller.SetBackPictureFromHandle methods
enumVideoImageAdjustProps	nProperty parameter of the VideoPlayer.ImageAdjustPropertyGet, VideoPlayer.ImageAdjustPropertySet and VideoPlayer.ImageAdjustPropertyRangeGet methods
enumGraphicItemMaskValues	nGraphicItemsMask field of the WSCROLLER_SETTINGS data structure
enumWaveformLineDashStyles	nPositionLineDashStyle field of the WSCROLLER_SETTINGS data structure
enumLineCaps	nPositionLineHighCap and nPositionLineLowCap fields of the WSCROLLER_SETTINGS data structure
enumLineDashCaps	nPositionLineDashCap field of the WSCROLLER_SETTINGS data structure
enumBassModules	nModule parameter of the BassModuleGet method
enumBassPluginStreamCreateFuncs	nType parameter of the BassPluginStreamCreateFunc method
enumComponentTypes	nComponentType parameter of the MixerVolumeSet, MixerVolumeGet, MixerMuteSet and MixerMuteGet methods
enumInternetSetting	nSetting parameter of the InternetSettingsGet and InternetSettingsSet methods
enumMediaTypes	nMediaType parameter of the Downloader.SessionStartToPlayer and Youtube.VideoSearchByIDDownloadStreamToPlayer methods
enumDataTypes	nDataType parameter of the MediaFileDecoder.FileDataGet method
enumDecodePositionUnit	nPositionUnit parameter of the MediaFileDecoder.FilePositionGet and MediaFileDecoder.FilePositionSet methods
enumPlayerEvents	nEvent parameter of the CallbackForPlayersEventsSet method
enumCdDrivesEvents	nEvent parameter of the CallbackForCdDrivesEventsSet method
enumCoreAudioEvents	nEvent parameter of the CallbackForCoreAudioEventsSet method
enumSapiVoiceAttributes	nAttribute parameter of the SoundGenerator.SpeechVoiceAttributeGet method
enumSoundGenWaveTypes	nWaveType parameter of the SoundGenerator.StreamCreateTone, SoundGenerator.StreamChannelAddTone and SoundGenerator.StreamElementToneTypeGet methods
enumSoundGenNoiseTypes	nNoiseType parameter of the SoundGenerator.StreamCreateNoise, SoundGenerator.StreamChannelAddNoise and SoundGenerator.StreamElementToneNoiseGet methods
enumSoundGenSlidingWaveTypes	nWaveType parameter of the SoundGenerator.StreamCreateSlidingTone, SoundGenerator.StreamChannelAddSlidingTone and SoundGenerator.StreamElementSlidingToneTypeGet methods
enumSoundGeneratorTypes	nType parameter of the SoundGenerator.StreamElementTypeGet method
enumSpectrumEnhTypes	nGraphType field of the SPECTR_ENH_GENERAL_SETTINGS data structure
enumSpectrumEnhWindowTypes	nFFTWindowType field of the SPECTR_ENH_GENERAL_SETTINGS data structure
enumZipEncryptionTypes	nEncryptionType parameter of the ZIP.Create method
enumPlayerSoundComposerTypes	nType parameter of the SoundComposer.ItemTypeGet method
enumRecognizeSoundInfo	nInfo parameter of the SoundRecognizer.ResultInfoGet method
enumRecognizeSoundArtistInfo	nInfo parameter of the SoundRecognizer.ResultArtistInfoGet method
enumTracksBoardRectangles	nIdRectangle parameter of the TracksBoard.RectangleGet method and nRectangle parameter of the TracksBoard.MouseActionRectangleGet method
enumTracksBoardViewModes	nViewMode field of the TRACKSBOARD_WAVEFORM_SETTINGS data structure
enumTracksBoardItemTypes	nType parameter of the TracksBoard.ItemTypeGet method
enumTracksBoardTitleModes	nShowTitleText field of the TRACKSBOARD_ITEM_SETTINGS data structure
enumMouseActions	nAction parameter of the TracksBoardMouseNotification and WaveScrollerMouseNotification events
enumEncodingFormats	EncodeFormats.FormatToUse property
enumAacEncodeModes	EncodeFormats.AAC.EncodeMode property
enumAacPlusEncodeModes	EncodeFormats.AACPlus.EncodeMode property
enumMp3EncodeModes	EncodeFormats.MP3.EncodeMode property
enumWavEncodeModes	EncodeFormats.WAV.EncodeMode property
enumOggEncodeModes	EncodeFormats.OGG.EncodeMode property
enumWmaEncodeModes	EncodeFormats.WMA.EncodeMode property and nEncodeMode parameter of the EncodeFormats.WMA.GetEncodingProfileInfo, EncodeFormats.WMA.GetEncodingCBRCount, EncodeFormats.WMA.GetEncodingCBR, EncodeFormats.WMA.GetEncodingProfileProCount and EncodeFormats.WMA.GetEncodingProfileProInfo methods.
enumW64EncodeModes	EncodeFormats.W64.EncodeMode property
enumFLACEncodeModes	EncodeFormats.FLAC.EncodeMode property
enumYoutubeChannelsSearchInfo	nInfo parameter of the Youtube.ChannelsListSearchItemInfoGet method
enumYoutubeChannelItemsSearchInfo	nInfo parameter of the Youtube.ChannelVideoListSearchItemInfoGet method
enumYoutubeVideosSearchInfo	nInfo parameter of the Youtube.VideoListSearchItemInfoGet method
enumYoutubeStreamType	nType parameter of the Youtube.VideoSearchByIDDownloadStreamToFile, Youtube.VideoSearchByIDDownloadStreamToPlayer, Youtube.VideoSearchByIDStreamCountGet and Youtube.VideoSearchByIDStreamInfoGet methods
enumYoutubeStreamInfo	nInfo parameter of the Youtube.VideoSearchByIDStreamInfoGet method
enumYoutubeVideoSearchByIdInfo	nInfo parameter of the Youtube.VideoSearchByIDInfoGet and nThumbSize parameter of the Youtube.VideoSearchByIDThumbnailGet methods
enumYoutubeSearches	nSearchType parameter of the YoutubeSearchDone event

The following examples, under different development environments, show how to use Mnemonic Constants in your code. These examples assume that one instance of the control, named MyPlayer, exists on a form or dialog box. The purpose of this sample code is to check if a certain player is in paused state.

Microsoft Visual C++ (4.0, 5.0, 6.0 and .NET)

Microsoft Visual Basic 5 and 6

Microsoft Visual Basic.NET

Microsoft Visual C#.NET

Microsoft Visual C++ (4.0, 5.0, 6.0 and .NET)

Because of the different behaviour of these environments, you need to include the module AdjMmsEngDef.h in order to use predefined Mnemonic Constants: This module can be found inside the product Include directory (default \Program Files\MultiMedia Soft\Active DJ Studio\include).

You can test a certain player (0 in this sample) for the "paused" state using the following line of code:

if (MyControl.GetPlayerStatus (0) == SOUND_PAUSED)

// do something

.....

else

// do something else

.....

The GetPlayerStatus method is defined by the control wrapper class CAmp3dj contained inside the amp3dj.cpp and amp3dj.h files: these wrapper files are automatically generated when you insert the control inside your project. So, in order to access this function, you will have to insert the following line of code somewhere in your code.

#include "amp3dj.h"

The mnemonic constant SOUND_PAUSED can be found inside the AdjMmsEngDef.h module file. So, in order to access this value, you will have to insert the following line of code somewhere in your code.

#include "AdjMmsEngDef.h"

Microsoft Visual Basic 5 and 6

In this environment you can use that IntelliSense features that make it easy to assign the intended value to the method parameter.

After typing the code...

If MyControl.GetPlayerStatus (0)

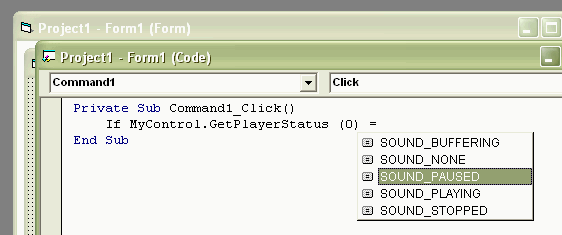

press the "=" key on your keyboard. IntelliSense displays the listbox of the possible values that can used to check the player status:

amp3dj_i000036

Select the SOUND_PAUSED value to complete the line of code as follows:

If MyControl.GetPlayerStatus (0) = SOUND_PAUSED Then

' do something

.....

Else

' do something else

.....

End If

Microsoft Visual Basic.NET

In this environment it is also easy to use that IntelliSense features that make it easy to assign the intended value to the method parameter.

After typing the code...

If MyControl.GetPlayerStatus (0)

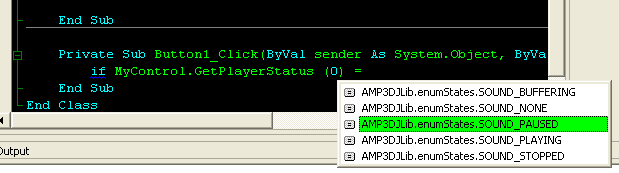

press the "=" key on your keyboard. IntelliSense displays the listbox of the possible values that can be assigned to the method parameter.

amp3dj_i000037

Select the AMP3DJLib.enumStates.SOUND_PAUSED value so the complete line of code will be:

If MyControl.GetPlayerStatus(0) = AMP3DJLib.enumStates.SOUND_PAUSED Then

' do something

Else

' do something else

End If

Microsoft Visual C#.NET

This environment requires a couple of additional lines of code to make use of Intellisense. First, the following code must be inserted at the beginning of the form management file:

using AMP3DJLib;

After typing the code...

if (MyControl.GetPlayerStatus (0) == enumStates

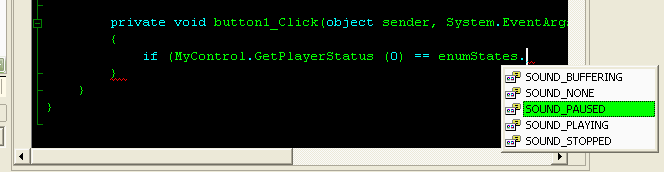

press the "." key on your keyboard. Note that to use Intellisense, you must add enumStates after the equal sign in order to trigger the enumStates enumerated type. After typing a period, Intellisense is activated.

if (MyControl.GetPlayerStatus (0) == enumStates.

amp3dj_i000038

Select the SOUND_PAUSED value so the complete line of code will be:

if (MyControl.GetPlayerStatus (0) == enumStates.SOUND_PAUSED)

// do something

....

else

// do something else

....
