The TRACKSBOARD_ITEM_SETTINGS structure describes graphical settings applied to sound items rendered over the TracksBoard. Current settings can be retrieved through the TracksBoard.SettingsItemGet method and modified through the TracksBoard.SettingsItemSet method.
For details about the use of the TracksBoard refer to the How to use the TracksBoard to visually compose songs tutorial.
For further details about methods of the TracksBoard refer to the TracksBoard object section.
Visual C++ definition
typedef struct
{
OLE_COLOR colorRect;
OLE_COLOR colorRectBorder;
OLE_COLOR colorRectSelected;
OLE_COLOR colorRectSelectedBorder;
short bDisplayVolumePoints;
OLE_COLOR colorVolumePointsLine;
OLE_COLOR colorVolumePoints;
OLE_COLOR colorVolumePointsSelected;
short bAutoApplyVolumeAutomation;
short bDisplayAmplitudeLine;
OLE_COLOR colorAmplitudeLine;
OLE_COLOR colorTrackerPosition;
OLE_COLOR colorTrackerVolumePointPos;
long nShowTitleText;
OLE_COLOR colorTitleText;
OLE_COLOR colorTitleTextSel;
OLE_COLOR colorTitleTextBackground;
OLE_COLOR colorTitleTextBackgroundSel;
} TRACKSBOARD_ITEM_SETTINGS;
This data structure is defined inside the AdjMmsEngDef.h header file which can be found inside the product's Include directory (default \Program Files\MultiMedia Soft\Active DJ Studio\include).
Visual Basic definition
Public Type TRACKSBOARD_ITEM_SETTINGS
colorRect as OLE_COLOR
colorRectBorder as OLE_COLOR
colorRectSelected as OLE_COLOR
colorRectSelectedBorder as OLE_COLOR
bDisplayVolumePoints as Integer
colorVolumePointsLine as OLE_COLOR
colorVolumePoints as OLE_COLOR
colorVolumePointsSelected as OLE_COLOR
bAutoApplyVolumeAutomation as Integer
bDisplayAmplitudeLine as Integer
colorAmplitudeLine as OLE_COLOR
colorTrackerPosition as OLE_COLOR
colorTrackerVolumePointPos as OLE_COLOR
nShowTitleText as enumTracksBoardTitleModes
colorTitleText as OLE_COLOR
colorTitleTextSel as OLE_COLOR
colorTitleTextBackground as OLE_COLOR
colorTitleTextBackgroundSel as OLE_COLOR
End Type
This data structure is defined inside the AdjMmsEngDef.bas module file which can be found inside the product's Include directory (default \Program Files\MultiMedia Soft\Active DJ Studio\include).

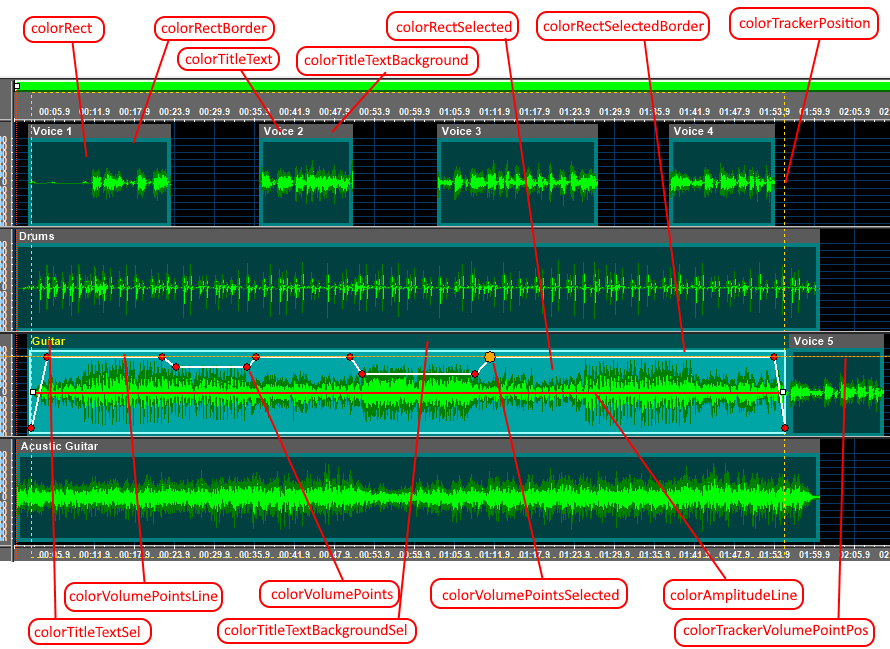

Member |
Description |
||||||||||||
|
|
||||||||||||
Color used for rendering the rectangle that encloses the waveform of each sound item. |
|||||||||||||
Color used for rendering the rectangle that encloses the waveform of each sound item. |
|||||||||||||
Color used for rendering the rectangle that encloses the waveform of a selected sound item. |
|||||||||||||
Color used for rendering the border for the rectangle that encloses the waveform of a selected sound item. The selected border can be hidden by setting this value to -1. |
|||||||||||||

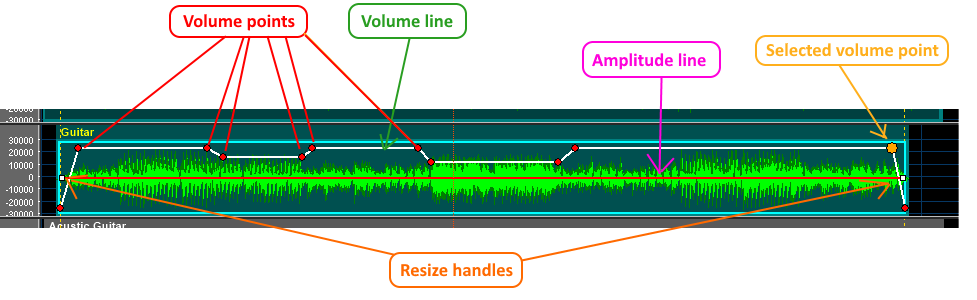

Boolean value that specifies if volume points and related connecting lines should be displayed or hidden. Supported values are the following:
|
|||||||||||||
Color used for rendering the line connecting volume points on the selected item. This default setting can be modified on a "per item" basis through the TracksBoard.ItemWaveColorsSet method |
|||||||||||||
Color used for rendering volume points. This default setting can be modified on a "per item" basis through the TracksBoard.ItemWaveColorsSet method |
|||||||||||||
Color used for rendering selected volume points. This default setting can be modified on a "per item" basis through the TracksBoard.ItemWaveColorsSet method |
|||||||||||||
Boolean value that specifies if volume points, after being changed, should be automatically applied to the sound item. Supported values are the following:
|
|||||||||||||
Boolean value that specifies if the amplitude line is displayed. Supported values are the following:
|
|||||||||||||
Color used for rendering the amplitude line. This default setting can be modified on a "per item" basis through the TracksBoard.ItemWaveColorsSet method |
|||||||||||||
Color used for rendering the tracker position of a selected item. The tracker position can be hidden by setting this value to -1. |
|||||||||||||
Color used for rendering the tracker position of a selected volume point. The tracker position can be hidden by setting this value to -1. |
|||||||||||||
Visualization mode of the title containing the friendly name Supported values are the following:
|
|||||||||||||
Color used for rendering the title text |
|||||||||||||
Color used for rendering the title text when the item is selected |
|||||||||||||
Color used for rendering the background of the title text |
|||||||||||||
Color used for rendering the background of the title text text when the item is selected |
