Classes > TracksBoard class > Data structures > TRACKSBOARD_GENERAL

The TRACKSBOARD_GENERAL_SETTINGS structure describes the general settings applied to the TracksBoard. The current settings can be retrieved through the TracksBoard.SettingsGeneralGet method and modified through the TracksBoard.SettingsGeneralSet method.

For details about the use of the TracksBoard refer to the How to use the TracksBoard to visually compose songs tutorial.

For further details about methods of the TracksBoard refer to the TracksBoard object section.

C# definition

public struct TRACKSBOARD_GENERAL_SETTINGS

{

public bool bAppearance3d;

public float fHorizontalZoomFactor;

public float fVerticalZoomFactor;

public Int16 nPlayHeadLineWidth;

public enumWaveformLineDashStyles nPlayHeadLineDashStyle;

public Color colorPlayHeadLine;

public enumLineCaps nPlayHeadLineHighCap;

public enumLineCaps nPlayHeadLineLowCap;

public enumLineDashCaps nPlayHeadLineDashCap;

public Int16 nPlayHeadLineTranspFactor;

public bool bItemAutoRefresh;

public bool bItemsMoveEnabled;

}

Member

Description

bAppearance3d

Boolean value that specifies if the Waveform Analyzer is displayed with 3D borders.

asoednet_i000070

Supported values are the following:

Mnemonic constant	Meaning
False	Doesn't display 3D borders
True	Displays 3D borders

fHorizontalZoomFactor

Floating point value indicating the factor applied to horizontal zooming operations: by default the zoom factor is 2.0.

The value of this field cannot be lower than 1.01. Lower values will be automatically capped to 1.01.

fVerticalZoomFactor

Floating point value indicating the factor applied to vertical zooming operations: by default the zoom factor is 2.0.

The value of this field cannot be lower than 1.01. Lower values will be automatically capped to 1.01.

nPlayHeadLineWidth

Width in pixels of the play head line.

nPlayHeadLineDashStyle

Dash style of the play head line

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_DASH_STYLE_SOLID	0	Solid line.
LINE_DASH_STYLE_DASH	1	Dashed line.
LINE_DASH_STYLE_DOT	2	Dotted line.
LINE_DASH_STYLE_DASH_DOT	3	Alternating dash-dot line line.
LINE_DASH_STYLE_DASH_DOT_DOT	4	Alternating dash-dot-dot line line.

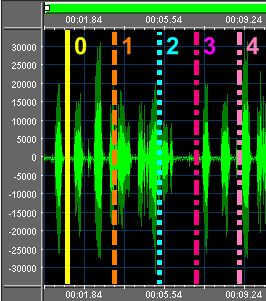

On the screenshot below you can see the different dash styles with the corresponding value displayed:

colorPlayHeadLine

Color used for rendering the play head line.

nPlayHeadLineHighCap

Type of high cap for the play head line.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_CAP_SQUARE	0	Specifies a square cap.
LINE_CAP_ROUND	1	Specifies a circular cap.
LINE_CAP_TRIANGLE	2	Specifies a triangular cap.
LINE_CAP_SQUARE_ANCHOR	3	Specifies that the line ends are anchored with a square.
LINE_CAP_ROUND_ANCHOR	4	Specifies that the line ends are anchored with a circle.
LINE_CAP_DIAMOND_ANCHOR	5	Specifies that the line ends are anchored with a diamond.
LINE_CAP_ARROW_ANCHOR	6	Specifies that the line ends are anchored with arrowheads.

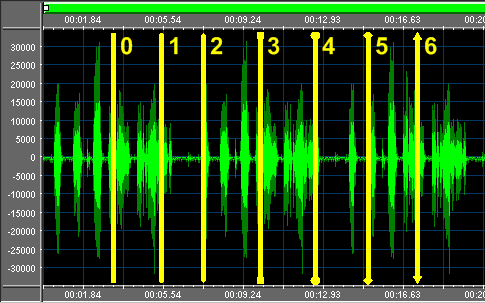

On the screenshot below you can see the different types of line caps with the corresponding value displayed:

nPlayHeadLineLowCap

Type of low cap for the play head line.

Supported values are the same as seen for the nPositionLineHighCap field above.

nPlayHeadLineDashCap

Type of dash/dot cap for the play head line.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_DASH_CAP_FLAT	0	Specifies a square cap that squares off both ends of each dash.
LINE_DASH_CAP_ROUND	1	Specifies a circular cap that rounds off both ends of each dash.
LINE_DASH_CAP_TRIANGLE	2	Specifies a triangular cap that points both ends of each dash.

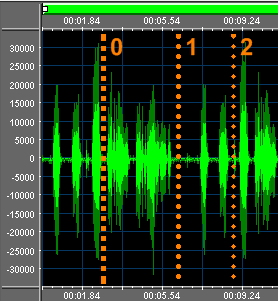

On the screenshot below you can see the different types of line dash caps with the corresponding value displayed:

nPlayHeadLineTranspFactor

Transparent factor applied to the play head line.

This value can range from 0 (total opacity) to 255 (total transparency). Values outside of this range will be automatically capped to the nearest valid value.

bItemAutoRefresh

Boolean value that specifies if the sound item is automatically refreshed during the analysis phase.

Supported values are the following:

Mnemonic constant	Meaning
False (default)	Auto-refresh is disabled.
True	Auto-refresh is enabled.

bItemsMoveEnabled

Boolean value that specifies if selected items can be moved or resized through the mouse.

Supported values are the following:

Mnemonic constant	Meaning
False	Move and resize are disabled.
True (default)	Move and resized are enabled.
