Data structures > WANALYZER_HORIZONTAL

The WANALYZER_HORIZONTAL_LINE structure describes settings applied to a horizontal line added to the Waveform Analyzer through the GraphicItemHorizontalLineAdd. The current settings can be retrieved through the GraphicItemHorizontalLineParamsGet method and modified through the GraphicItemHorizontalLineParamsSet method.

Visual C++ definition

typedef struct

{

OLE_COLOR color;

long nChannel;

long nDashStyle;

short nHeightInPix;

short nTranspFactor;

short nVertPosInPerc;

long nLeftCap;

long nRightCap;

long nDashCap;

} WANALYZER_HORIZONTAL_LINE;

This data structure is defined inside the WavMmsEngDef.h header file which can be found inside the product's Include directory (default \Program Files\MultiMedia Soft\Active Waveform Analyzer\include).

Visual Basic definition

Public Type WANALYZER_HORIZONTAL_LINE

color As OLE_COLOR

nChannel As enumHorizontalLineChannel

nDashStyle As enumWaveformLineDashStyles

nHeightInPix As Integer

nTranspFactor As Integer

nVertPosInPerc As Integer

nLeftCap As enumLineCaps

nRightCap As enumLineCaps

nDashCap As enumLineDashCaps

End Type

This data structure is defined inside the AsoedDef.bas module file which can be found inside the product's Include directory (default \Program Files\MultiMedia Soft\Active Waveform Analyzer\include).

Member

Description

color

Color used for rendering the line.

nChannel

Audio channel on which the horizontal line is drawn.

Supported values are the following:

Mnemonic constant	Numeric value	Meaning
HORZ_LINE_CHANNEL_ALL	0	The horizontal line is drawn on all channels
HORZ_LINE_CHANNEL_LEFT	1	The horizontal line is drawn on the left channel only
HORZ_LINE_CHANNEL_RIGHT	2	The horizontal line is drawn on the right channel only

nDashStyle

Line dash style.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_DASH_STYLE_SOLID	0	Solid line.
LINE_DASH_STYLE_DASH	1	Dashed line.
LINE_DASH_STYLE_DOT	2	Dotted line.
LINE_DASH_STYLE_DASH_DOT	3	Alternating dash-dot line line.
LINE_DASH_STYLE_DASH_DOT_DOT	4	Alternating dash-dot-dot line line.

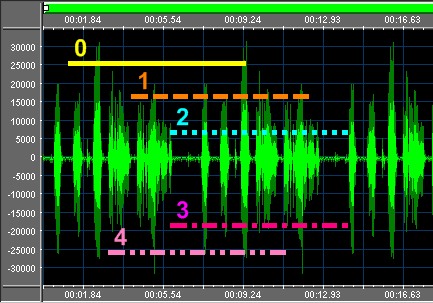

On the screenshot below you can see the different types of horizontal lines with the corresponding value displayed on the buddy text:

nHeightInPix

Height of the line expressed in pixels.

nTranspFactor

Transparent factor. This value can range from 0 (total opacity) to 255 (total transparency). Values outside of this range will be automatically capped to the nearest valid value.

nVertPosInPerc

Vertical position of the line expressed in percentage of wave amplitude.

May assume values from -100 to 100: a negative value indicates that the line should be drawn over negative waveform peaks.

In case you should be willing the set the line position based upon a logarithmic scale, you could convert your value in dB to a value in percentage using the following formula:

ValueInPerc = 100 * pow (10, ValueInDB/20);

On the screenshot below you can see 3 horizontal lines, 2 on positive peaks, respectively at 70% and 25% of the waveform amplitude, and one on negative peaks at -80% of the waveform amplitude.

nLeftCap

Type of cap for the left end of the line.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_CAP_SQUARE	0	Specifies a square cap.
LINE_CAP_ROUND	1	Specifies a circular cap.
LINE_CAP_TRIANGLE	2	Specifies a triangular cap.
LINE_CAP_SQUARE_ANCHOR	3	Specifies that the line ends are anchored with a square.
LINE_CAP_ROUND_ANCHOR	4	Specifies that the line ends are anchored with a circle.
LINE_CAP_DIAMOND_ANCHOR	5	Specifies that the line ends are anchored with a diamond.
LINE_CAP_ARROW_ANCHOR	6	Specifies that the line ends are anchored with arrowheads.

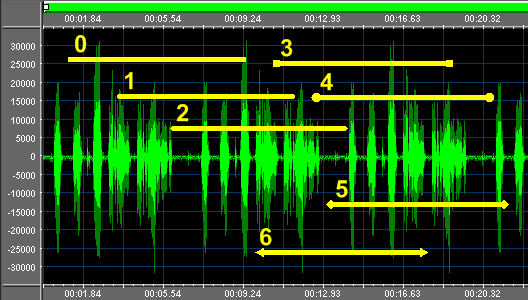

On the screenshot below you can see the different types of line caps with the corresponding value displayed on the buddy text:

nRightCap

Type of cap for the right end of the line.

Supported values are the same as seen for the nLeftCap field above.

nDashCap

Type of dash/dot cap for the line.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_DASH_CAP_FLAT	0	Specifies a square cap that squares off both ends of each dash.
LINE_DASH_CAP_ROUND	1	Specifies a circular cap that rounds off both ends of each dash.
LINE_DASH_CAP_TRIANGLE	2	Specifies a triangular cap that points both ends of each dash.

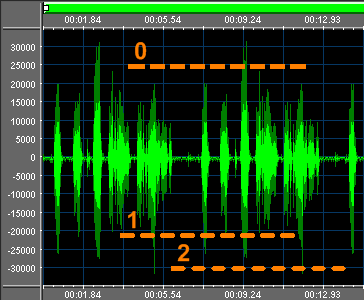

On the screenshot below you can see the different types of line dash caps with the corresponding value displayed on the buddy text:
