WANALYZER_WAVEFORM_SETTINGS structure |
|
The WANALYZER_WAVEFORM_SETTINGS structure describes settings applied while rendering the waveform on the Waveform Analyzer. The current settings can be retrieved through the WaveformAnalyzer.SettingsWaveGet method and modified through the WaveformAnalyzer.SettingsWaveSet method.
For details about the use of the Waveform Analyzer refer to the How to use the Waveform Analyzer section.
For further details about methods of the Waveform Analyzer refer to the WaveformAnalyzer class section.
C# definition
public struct WANALYZER_WAVEFORM_SETTINGS
{
public enumWaveformStereoModes nStereoVisualizationMode;
public Color colorWaveLinePeak;
public Color colorWaveLineCenter;
public Int16 nWaveLineIntensityFactor;
public Color colorWaveBackground;
public bool bUseHalfColorsForPeaks;
public enumWaveformSelectionMode nSelectionMode;
public Color colorWaveLineSelPeak;
public Color colorWaveLineSelCenter;
public Color colorWaveSelBackground;
public Color colorTransparentGlass;
public Int16 nTransparentGlassFactor;
public Color colorVolumeLevelLine;
public Color colorTimeLine;
public enumTranspGlassType nTransparentGlassType;
public Int16 nTransparentGlassPos3D;
public bool bTransparentGlassInvert3D;
public bool bDrawLinesOverWave;
}

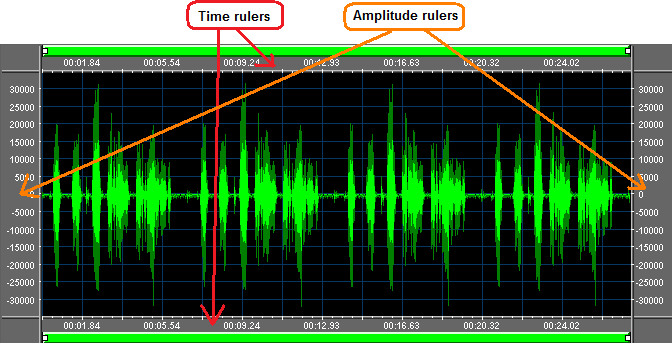

On the screenshot A below you can see the various involved colors: the portion with blue background represents a selection:
Screenshot A
On the screenshot B below you can see the default colors with a selection rendered as a transparent glass.:
Screenshot B
Member |
Description |
|||||||||||||||
|
|
|||||||||||||||
Visualization mode used for displaying stereo sounds Supported values are the following:
|
||||||||||||||||
Color used for rendering peaks of the waveform line. See screenshot A above. |
||||||||||||||||
Color used for rendering the center of the waveform line. See screenshot A above. |
||||||||||||||||
Factor of gradient intensity of the waveform line. This value can range from 0 to 100 with a default value of 50. Values outside of this range will be automatically capped to the nearest valid value. On the screenshot below you can appreciate the difference between the default value 50 (on the left) and a value of 20 (on the right): |
||||||||||||||||
Color used for rendering the waveform background. See screenshot A above. |
||||||||||||||||
Boolean value that specifies if waveform peaks will have a half intensity color. This field is ignored when colors set into the colorWaveLinePeak and colorWaveLineCenter fields are different. Supported values are the following:
|
||||||||||||||||
Specifies how waveform selection is rendered. See screenshots A and B above. Supported values are the following:
|
||||||||||||||||
Color used for rendering gradient of peaks of the waveform line when selected. See screenshot A above. This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_CUSTOM_COLORS. |
||||||||||||||||
Color used for rendering gradient of center of the waveform line when selected. See screenshot A above. This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_CUSTOM_COLORS. |
||||||||||||||||
Color used for rendering the waveform background when selected. See screenshot A above. This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_CUSTOM_COLORS. |
||||||||||||||||
Color used for rendering the transparent glass selection. See screenshot B above. This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS. |
||||||||||||||||
Transparent factor for rendering the transparent glass selection. This value can range from 0 (total opacity) to 255 (total transparency) with a default value of 128. Values outside of this range will be automatically capped to the nearest valid value. This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS. |
||||||||||||||||
Color used for rendering horizontal lines related to the volume level. See screenshot A above. You can set this field to -1 in order to hide volume level lines. |
||||||||||||||||
Color used for rendering vertical lines related to time. See screenshot A above. You can set this field to -1 in order to hide time lines. |
||||||||||||||||
Type of transparent glass. Supported values are the following:
This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS. On the screenshot below you can appreciate the difference between the available settings: |
||||||||||||||||
Position of the 3D effect for the transparent glass. This value can range from 0 to 100 with a default value of 50. Values outside of this range will be automatically capped to the nearest valid value. This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS. |
||||||||||||||||
Boolean value that specifies if the transparency of the 3D effect is inverted. Supported values are the following:
This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS. On the screenshot below you can appreciate the difference between the available settings (inverted 3D effect on the left): |
||||||||||||||||
Boolean value that specifies if time and volume lines must be drawn over the waveform. Supported values are the following:
|
