Classes > WaveformScroller class > Data structures > WSCROLLER

The WSCROLLER_SETTINGS data structure describes the graphical settings applied to a specific waveform scroller. Graphical settings related to a specific waveform scroller can be retrieved and modified through the WaveformScroller.SettingsGet and WaveformScroller.SettingsSet methods.

For further details about methods of the Waveform scroller refer to the WaveformScroller class.

For a tutorial about the use of Waveform scrollers refer to the How to scroll the sound's waveform during playback tutorial.

C# definition

public struct WSCROLLER_SETTINGS

{

public enumWaveformStereoModes nStereoVisualizationMode;

public Color colorWaveLinePeak;

public Color colorWaveLineCenter;

public Int16 nWaveLineIntensityFactor;

public Color colorWaveBackground;

public bool bUseHalfColorsForPeaks;

public bool bAppearance3d;

public Color colorPositionLine;

public Color colorBorder;

public bool bPositionLineShow;

public enumWaveformLineDashStyles nPositionLineDashStyle;

public Int16 nPositionLineWidth;

public enumLineCaps nPositionLineHighCap;

public enumLineCaps nPositionLineLowCap;

public enumLineDashCaps nPositionLineDashCap;

public Int16 nPositionLineTranspFactor;

public enumGraphicItemMaskValues nGraphicItemsMask;

public enumWaveScrollerAutoUpdate nUpdateSpeed;

public float fVerticalZoomFactor;

}

Member

Description

nStereoVisualizationMode

Visualization mode used for displaying stereo sounds

Supported values are the following:

Mnemonic constant	Value	Meaning
STEREO_MODE_CHANNELS_BOTH	0	Right and left channels are displayed separately .
STEREO_MODE_CHANNELS_LEFT	1	Only the left channel content is displayed on
STEREO_MODE_CHANNELS_RIGHT	2	Only the right channel content is displayed
STEREO_MODE_CHANNELS_MIXED (default)	3	Right and left channels contents are mixed together

colorWaveLinePeak

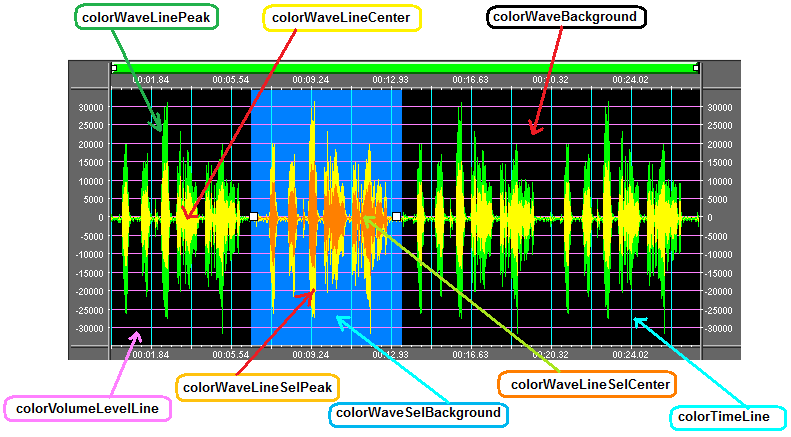

Color used for rendering peaks of the waveform line. See screenshot above.

colorWaveLineCenter

Color used for rendering the center of the waveform line. See screenshot above.

nWaveLineIntensityFactor

Factor of gradient intensity of the waveform line.

This value can range from 0 to 100 with a default value of 50. Values outside of this range will be automatically capped to the nearest valid value.

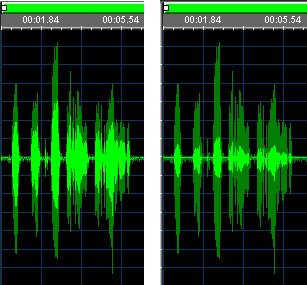

On the screenshot below you can appreciate the difference between the default value 50 (on the left) and a value of 20 (on the right):

colorWaveBackground

The color used to render the waveform background (default is set to Black). See screenshot above.

bUseHalfColorsForPeaks

Boolean value that specifies if waveform peaks will have a half intensity color.

This field is ignored when colors set into the colorWaveLinePeak and colorWaveLineCenter fields are different.

Supported values are the following:

Value

Meaning

False

Don't use half color for drawing waveform peaks

True (default)

Use half color for drawing waveform peaks

bAppearance3d

Boolean value that specifies if the waveform scroller is displayed with 3D borders.

Supported values are the following:

Value	Meaning
False	Doesn't display 3D borders
True (default)	Displays 3D borders

colorPositionLine

The color used to render the central playback position line (default is set to White). See screenshot above.

colorBorder

The color used to render the border (only when the bAppearance3d parameter is set to False) (default is set to Black)

bPositionLineShow

Boolean value that specifies if the central playback position line must be shown or hidden.

Supported values are the following:

Value	Meaning
False	Hides the playback position line
True (default)	Shows the playback position line

nPositionLineDashStyle

Dash style of the line that indicates a selected position on the waveform.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_DASH_STYLE_SOLID	0	Solid line.
LINE_DASH_STYLE_DASH	1	Dashed line.
LINE_DASH_STYLE_DOT	2	Dotted line.
LINE_DASH_STYLE_DASH_DOT	3	Alternating dash-dot line line.
LINE_DASH_STYLE_DASH_DOT_DOT	4	Alternating dash-dot-dot line line.

nPositionLineWidth

Width in pixels of the position line.

nPositionLineHighCap

Type of cap for the high end of the position line.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_CAP_SQUARE	0	Specifies a square cap.
LINE_CAP_ROUND	1	Specifies a circular cap.
LINE_CAP_TRIANGLE	2	Specifies a triangular cap.
LINE_CAP_SQUARE_ANCHOR	3	Specifies that the line ends are anchored with a square.
LINE_CAP_ROUND_ANCHOR	4	Specifies that the line ends are anchored with a circle.
LINE_CAP_DIAMOND_ANCHOR	5	Specifies that the line ends are anchored with a diamond.
LINE_CAP_ARROW_ANCHOR	6	Specifies that the line ends are anchored with arrowheads.

nPositionLineLowCap

Type of cap for the low end of the position line.

Supported values are the same as seen for the nPositionLineHighCap field above.

nPositionLineDashCap

Type of dash/dot cap for the position line.

Supported values are the following:

Mnemonic constant	Value	Meaning
LINE_DASH_CAP_FLAT	0	Specifies a square cap that squares off both ends of each dash.
LINE_DASH_CAP_ROUND	1	Specifies a circular cap that rounds off both ends of each dash.
LINE_DASH_CAP_TRIANGLE	2	Specifies a triangular cap that points both ends of each dash.

nPositionLineTranspFactor

Transparent factor applied to the position line.

This value can range from 0 (total opacity) to 255 (total transparency). Values outside of this range will be automatically capped to the nearest valid value.

nGraphicItemsMask

Combination of values determining the mask of graphic items that must be drawn over the waveform scroller.

Supported values are the following:

Mnemonic constant	Value	Meaning
MASK_GRAPHIC_ITEM_NONE	0	No graphic item is drawn
MASK_GRAPHIC_ITEM_VERTICAL_LINE (default)	1	Draws vertical lines
MASK_GRAPHIC_ITEM_HORIZONTAL_LINE	2	Draws horizontal lines
MASK_GRAPHIC_ITEM_WAVE_RANGE	4	Draw wave ranges

nUpdateSpeed

Value that determines how much frequently the waveform is updated during playback. The higher the update speed, the higher the needed CPU amount.

Supported values are the following:

Mnemonic constant	Value	Meaning
WAVEFORMSCROLLER_UPDATE_ULTRA_FAST	0	.Update occurs every 15 milliseconds
WAVEFORMSCROLLER_UPDATE_VERY_FAST	1	.Update occurs every 30 milliseconds
WAVEFORMSCROLLER_UPDATE_FAST (default)	2	.Update occurs every 45 milliseconds
WAVEFORMSCROLLER_UPDATE_MIDDLE	3	.Update occurs every 60 milliseconds
WAVEFORMSCROLLER_UPDATE_SLOW	4	.Update occurs every 75 milliseconds
WAVEFORMSCROLLER_UPDATE_VERY_SLOW	5	.Update occurs every 90 milliseconds
WAVEFORMSCROLLER_UPDATE_ULTRA_SLOW	6	.Update occurs every 105 milliseconds

fVerticalZoomFactor

Factor applied to vertical zooming operations. can assume values ranging from 0.5 to 5. Values outside of this range will be automatically capped to the nearest valid value. The default value is set to 1.

- Values lower than 1 will vertically zoom-out the waveform, reducing its vertical size

- Value 1 will display the waveform without zooming

- Values higher than 1 will vertically zoom-in the waveform, increasing its vertical size
