The WSCROLLER_SETTINGS data structure describes the graphical settings applied to a specific waveform scroller. Graphical settings related to a specific waveform scroller can be retrieved and modified through the WaveformScroller.SettingsGet and WaveformScroller.SettingsSet methods.
For further details about methods of the Waveform scroller refer to the WaveformScroller class.
For a tutorial about the use of Waveform scrollers refer to the How to scroll the sound's waveform during playback tutorial.
Visual C++ definition
typedef struct
{
long nStereoVisualizationMode;
OLE_COLOR colorWaveLinePeak;
OLE_COLOR colorWaveLineCenter;
short nWaveLineIntensityFactor;
OLE_COLOR colorWaveBackground;
short bUseHalfColorsForPeaks;
short bAppearance3d;
OLE_COLOR colorPositionLine;
OLE_COLOR colorBorder;
short bPositionLineShow;
long nPositionLineDashStyle;
short nPositionLineWidth;
long nPositionLineHighCap;
long nPositionLineLowCap;
long nPositionLineDashCap;
short nPositionLineTranspFactor;
long nGraphicItemsMask;
long nUpdateSpeed;
float fVerticalZoomFactor;
} WSCROLLER_SETTINGS;
This data structure is defined inside the AdjMmsEngDef.h header file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Recorder\include).
Visual Basic definition
Public Type WSCROLLER_SETTINGS
nStereoVisualizationMode as enumWaveformStereoModes
colorWaveLinePeak as OLE_COLOR
colorWaveLineCenter as OLE_COLOR
nWaveLineIntensityFactor as Integer
colorWaveBackground as OLE_COLOR
bUseHalfColorsForPeaks as Boolean
bAppearance3d as Boolean
colorPositionLine as OLE_COLOR
colorBorder as OLE_COLOR
bPositionLineShow as Boolean
nPositionLineDashStyle as enumWaveformLineDashStyles
nPositionLineWidth as Integer
nPositionLineHighCap as enumLineCaps
nPositionLineLowCap as enumLineCaps
nPositionLineDashCap as enumLineDashCaps
nPositionLineTranspFactor as Integer
nGraphicItemsMask as enumGraphicItemMaskValues
nUpdateSpeed as enumWaveScrollerAutoUpdate
fVerticalZoomFactor as Single
End Type
This data structure is defined inside the AdjMmsEngDef.bas module file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Recorder\include).
Member |
Description |
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
Visualization mode used for displaying stereo sounds Supported values are the following:
|
|||||||||||||||||||||||||

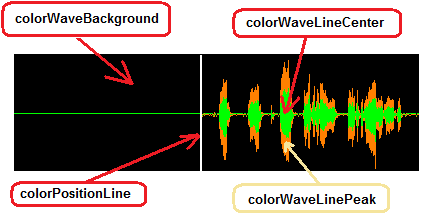

Color used for rendering peaks of the waveform line. See screenshot above. |
|||||||||||||||||||||||||
Color used for rendering the center of the waveform line. See screenshot above. |
|||||||||||||||||||||||||
Factor of gradient intensity of the waveform line. This value can range from 0 to 100 with a default value of 50. Values outside of this range will be automatically capped to the nearest valid value. On the screenshot below you can appreciate the difference between the default value 50 (on the left) and a value of 20 (on the right):
|
|||||||||||||||||||||||||
The color used to render the waveform background (default is set to Black). See screenshot above. |
|||||||||||||||||||||||||
Boolean value that specifies if waveform peaks will have a half intensity color. This field is ignored when colors set into the colorWaveLinePeak and colorWaveLineCenter fields are different. Supported values are the following:
|
|||||||||||||||||||||||||
Boolean value that specifies if the waveform scroller is displayed with 3D borders. Supported values are the following:
|
|||||||||||||||||||||||||
The color used to render the central playback position line (default is set to White). See screenshot above. |
|||||||||||||||||||||||||
The color used to render the border (only when the bAppearance3d parameter is set to False) (default is set to Black) |
|||||||||||||||||||||||||
Boolean value that specifies if the central playback position line must be shown or hidden. Supported values are the following:
|
|||||||||||||||||||||||||
Dash style of the line that indicates a selected position on the waveform. Supported values are the following:
|
|||||||||||||||||||||||||
Width in pixels of the position line. |
|||||||||||||||||||||||||
Type of cap for the high end of the position line. Supported values are the following:
|
|||||||||||||||||||||||||
Type of cap for the low end of the position line. Supported values are the same as seen for the nPositionLineHighCap field above. |
|||||||||||||||||||||||||
Type of dash/dot cap for the position line. Supported values are the following:
|
|||||||||||||||||||||||||
Transparent factor applied to the position line. This value can range from 0 (total opacity) to 255 (total transparency). Values outside of this range will be automatically capped to the nearest valid value. |
|||||||||||||||||||||||||
Combination of values determining the mask of graphic items that must be drawn over the waveform scroller. Supported values are the following:
|
|||||||||||||||||||||||||
Value that determines how much frequently the waveform is updated during playback. The higher the update speed, the higher the needed CPU amount. Supported values are the following:
|
|||||||||||||||||||||||||
Factor applied to vertical zooming operations. can assume values ranging from 0.5 to 5. Values outside of this range will be automatically capped to the nearest valid value. The default value is set to 1. - Values smaller than 1 will vertically zoom-out the waveform, reducing its vertical size - Value 1 will display the waveform without zooming - Values higher than 1 will vertically zoom-in the waveform, increasing its vertical size |
.
