Remarks
Returns parameters of an existing volume point.
For further details about defining a volume automation procedure refer to the How to define a volume automation procedure section.
For further details about methods related to the use of special effects refer to the EffectsMan class.
Syntax
[Visual Basic]
Public Function VolumeAutomationPointGetParameters (
nIndexVolumePoint as Int32,
ByRef fPosition as float,
ByRef fVolumeLevel as float,
ByRef nCurveType as enumVolumeCurves
) as enumErrorCodes
|
|
[C#]
public enumErrorCodes VolumeAutomationPointGetParameters (
Int32 nIndexVolumePoint,
ref float fPosition,
ref float fVolumeLevel,
enumVolumeCurves nCurveType
);
|
|
[C++]
public: enumErrorCodes VolumeAutomationPointGetParameters (
Int32 nIndexVolumePoint,
float __gc *fPosition,
float __gc *fVolumeLevel,
enumVolumeCurves nCurveType
);
|
|
Parameter
|
Description
|
|
|
nIndexVolumePoint
|
Zero-based index of the volume point
|
fPosition
|
Reference that, on return from the method call, will contain the position, expressed in the unit set through the Effects.VolumeAutomationSetScales method, where the volume point will be applied
|
fVolumeLevel
|
Reference that, on return from the method call, will contain the volume applied starting from the current automation point: the value is expressed in the unit set through the Effects.VolumeAutomationSetScales method.
|
nCurveType
|
Type of curve applied to reach the next volume point.
Supported values are the following:
Mnemonic constant
|
Value
|
Meaning
|
|
|
|
VOLUME_CURVE_NONE
|
0
|
No curve is applied: volume will be changed immediately and will be kept till next volume point.
|
VOLUME_CURVE_LINEAR
|
1
|
Linear curve
|
VOLUME_CURVE_EXPONENTIAL
|
2
|

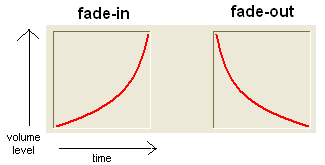

Exponential curve
|
VOLUME_CURVE_COSINE
|
3
|
Cosine curve
|
VOLUME_CURVE_SMOOTH
|
4
|
Smooth curve
|
VOLUME_CURVE_CUSTOM
|
5
|

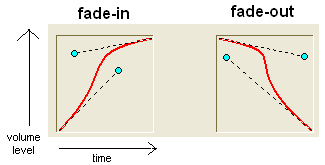

Custom Bézier curve.
|
|
Return value
Value
|
Meaning
|
|
|
Negative value
|
An error occurred (see the LastError property for further error details)
|
enumErrorCodes.ERR_NOERROR (0)
|
The method call was successful.
|
|
