Tutorials > Other useful settings

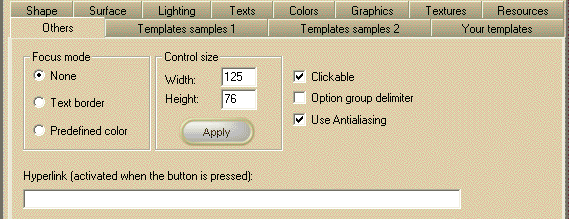

Through the Others tab of 3D Button Visual Editor you can define, at Design-time, some other settings of the button.

Note: The image below has hot links to each topic shown in the graphic.

3dabm_i000064

Item name	Description	Corresponding property
Focus mode "None"	Sets the focus mode to "None".	FocusMode
Focus mode "Text border"	Sets the focus mode to "Text border".	FocusMode
Focus mode "Predefined color"	Sets the focus mode to "Predefined color".	FocusMode
Control width	The control's width in pixels	Depends upon the development environment
Control height	The control's height in pixels	Depends upon the development environment
"Apply" button	Applies to the control the dimensions entered inside the "Width" and "Height" edit boxes
Clickable	Enables/disables the button click	Clickable
Option group delimiter	Sets/resets the button as group delimiter. This option is only available for radio buttons.	OptionGroupDelimiter
Use antialiasing	Enables/disables the use of anti-aliasing algorithms for rendering the button surface. This option doesn't affect text rendering.	UseAntialiasing
Hyperlink	Sets a connection from your program to another location.	Hyperlink
