COM Objects > WaveformAnalyzer object > Methods > WaveformAnalyzer.ViewModeGet method

Remarks

Obtains the current visualization mode on the waveform analyzer. The visualization mode can be modified through the WaveformAnalyzer.ViewModeSet method.

For details about the use of the Waveform Analyzer refer to the How to use the Waveform Analyzer section.

For further details about methods of the Waveform Analyzer refer to the WaveformAnalyzer object section.

Syntax

[Visual Basic]

control.WaveformAnalzyer.ViewModeGet (

nMode as enumWaveAnalyzerViewModes

) as enumErrorCodes

[C++]

short control.WaveformAnalzyer.ViewModeGet (

short *nMode

);

Parameter

Description

nMode

Reference that, after returning from the method call, will contain the visualization mode.

Supported values are the following:

Mnemonic constant

Value

Meaning

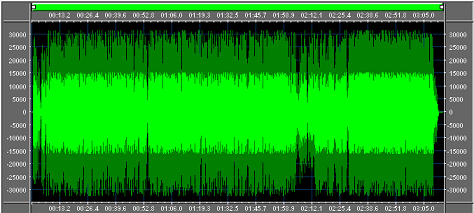

WANALYZER_VIEW_MODE_WAVEFORM

Waveform view

WANALYZER_VIEW_MODE_SPECTRAL

Spectral view

Return value

Value	Meaning

Negative value	An error occurred (see the LastError property for further error details)
enumErrorCodes.ERR_NOERROR (0)	The method call was successful
