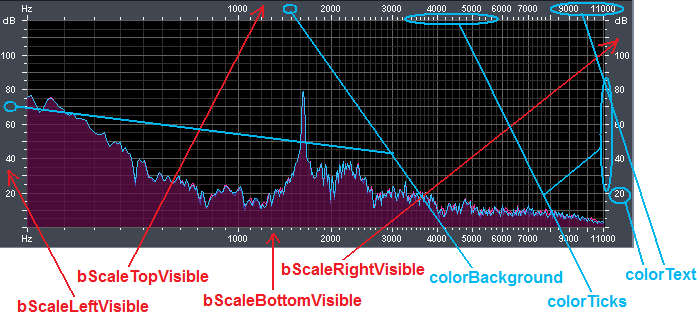

The SPECTR_ENH_RULERS_SETTINGS data structure describes the settings applied to rulers of a specific enhanced spectrum analyzer. The current settings can be obtained through the SpectrumEnh.SettingsRulersGet method and modified through the SpectrumEnh.SettingsRulersSet method.

For further details about using the Enhanced Spectrum Analyzer refer to the SpectrumEnh section.

For details about using the Enhanced Spectrum Analyzer refer to the How to use the Enhanced Spectrum Analyzer tutorial.

Visual C++ definition

typedef struct

{

short bLinearScale;

short bScaleTopVisible;

short bScaleBottomVisible;

short bScaleLeftVisible;

short bScaleRightVisible;

OLE_COLOR colorBackground;

OLE_COLOR colorTicks;

OLE_COLOR colorText;

} SPECTR_ENH_RULERS_SETTINGS;

This data structure is defined inside the AdjMmsEngDef.h header file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Recorder\include).

Visual Basic definition

Public Type SPECTR_ENH_RULERS_SETTINGS

bLinearScale As Boolean

bScaleTopVisible As Boolean

bScaleBottomVisible As Boolean

bScaleLeftVisible As Boolean

bScaleRightVisible As Boolean

colorBackground As OLE_COLOR

colorTicks As OLE_COLOR

colorText As OLE_COLOR

End Type

This data structure is defined inside the AdjMmsEngDef.bas module file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Recorder\include).

Member

Description

bLinearScale

Boolean value that specifies if the frequency ruler should display a linear or logarithmic scale.
